Pumps for Optimal Performance in Mining and Industrial Applications
Mosinki Supply offers a wide range of high-quality pumps from 0.37Kw to 11Kw on 220V and 380V, designed to meet the rigorous demands of the mining and industrial sectors.
Ensure your operations run smoothly with our high-performance pumps. Contact us today to find the perfect pump for your site.

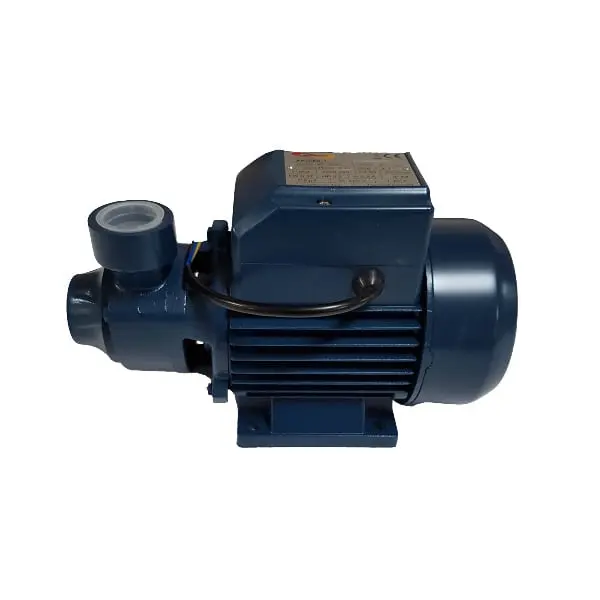

The Hurricane PKM60 centrifugal pressure pump is a 220V pump used to boost pressure in waterline.
It can be controlled by a PC13 automatic pump controler 220V.
Motor, Pump & Control Box
Single Phase : 220V – 240V 0.75KW 1HP / 50Hz, equipped with a standard (manual) control box 0.75Kw 1Hp.
Operating Conditions
• Maximum fluid temperature : 40°C
• Maximum ambient temperature : 40°C
| Specifications | |
| Voltage: | 220V |
| Power: | 0.37KW/0.5Hp |
| Outlet: | 25mm |
| Weight: | 5.9kg |
| Warranty : 12 Months |

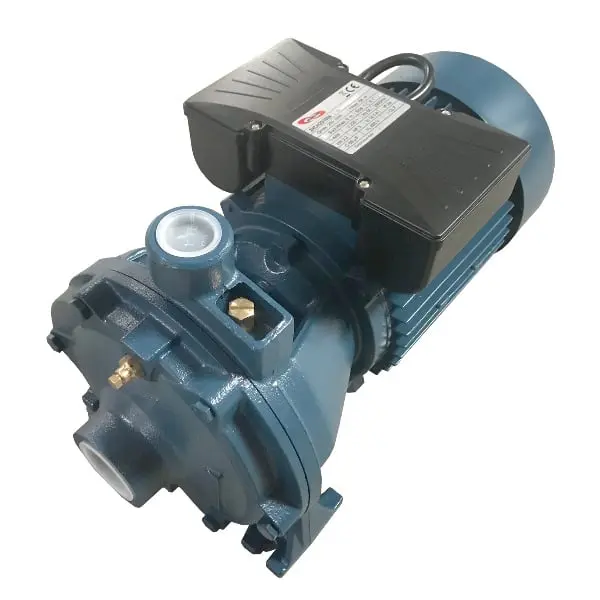

The Hurricane 2CPM32/175 multistage centrifugal pump is a 220V 2.2KW self priming pump used to boost pressure in waterline.
It has a 1 & 1/2″ Inlet and a 1″ Outlet.
Motor, Pump & Control Box
Single Phase : 220V – 240V 2.2KW 3HP / 50Hz, equipped with a standard (manual) control box 2.2KW 3HP
Operating Conditions
• Maximum fluid temperature : up to 40°C
• Maximum flow : 200L/min
• Max Head Heightr : 68m
*Also available in 380V and 1.5KW
| Specifications | |
| Voltage: | 220V 50Hz |
| Power: | 3HP/2.2Kw |
| Outlet: | 1" |
| Inlet: | 1 & 1/2″ |
| Weight: | 34 kg |
| Box Dimensions: | 520mm(L) x 260mm(W) x 335mm(H) |
| Warranty : 12 Months |

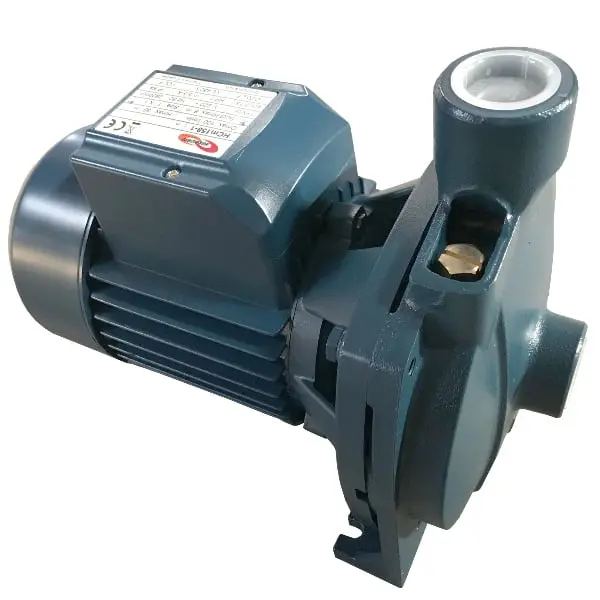

The Hurricane CPM158-1 centrifugal pump is a 220V 0.75KW self priming pump used to boost pressure in waterline.
It has an inlet size of 1″ and an outlet size of 1″
Operating Conditions
Maximum fluid temperature : up to 40°C
Max Flow : 100L/min
Max Head Height : 36m
| Specifications | |
| Voltage: | 220V 50Hz |
| Power: | 1HP/0.75Kw |
| Outlet: | 1" |
| Inlet: | 1" |
| Box Dimensions: | 340mm(L) x 220mm(W) x 270mm(H) |
| Warranty : 12 Months |

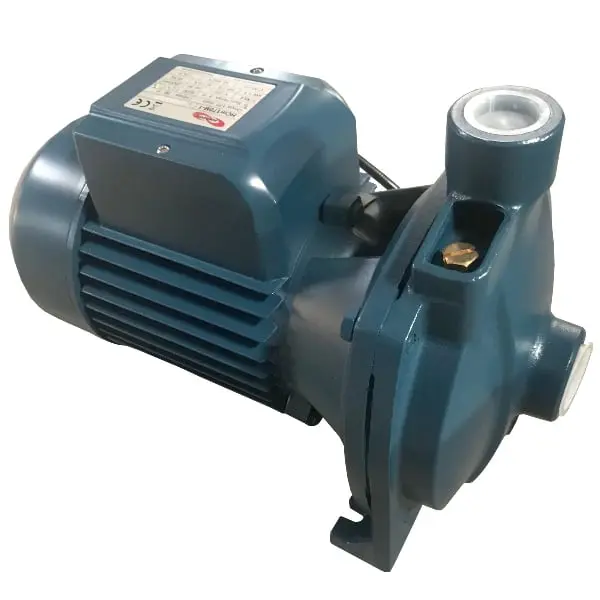

The Hurricane CPM170M-1 centrifugal pump is a 220V 1.1KW self priming pump used to boost pressure in waterline.
It has an inlet size of 1&1/4″ and an outlet size of 1″
Operating Conditions
Maximum fluid temperature : up to 40°C
Max Flow : 170L/min
Max Head Height : 36m
| Specifications | |
| Voltage: | 220V 50Hz |
| Power: | 1.5HP/1.1Kw |
| Outlet: | 1" |
| Inlet: | 1&1/4" |
| Box Dimensions: | 390mm(L) x 230mm(W) x 275mm(H) |
| Warranty : 12 Months |

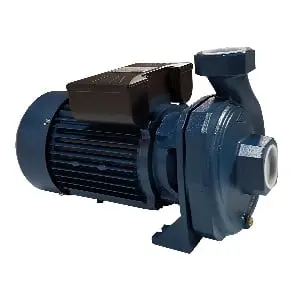

The Hurricane HSM80 centrifugal pump is a 220V 2.2KW self priming pump used to boost pressure in waterline.
It can be controlled by a PC13 automatic pump controler 220V.
Operating Conditions
Maximum fluid temperature : up to 40°C
Max Flow : 500L/min
Max Head Height : 58m
| Specifications | |
| Voltage: | 220V 50Hz |
| Power: | 3HP/2.2Kw |
| Outlet: | 50mm |
| Inlet: | 50mm |
| Box Dimensions: | 490mm(L) x 250mm(W) x 300mm(H) |
| Warranty : 12 Months |

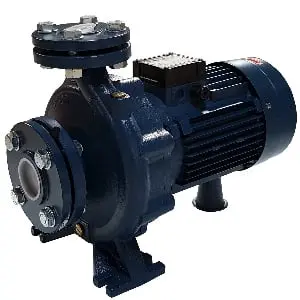

The Hurricane HST32-200-4 standard centrifugal pump is a 380V 4KW self priming pump used to boost pressure in waterline.
Operating Conditions
Max Flow : 24m3/hour
Max Head Height : 32m
| Specifications | |
| Voltage: | 380V 50Hz |
| Power HST32: | 5.5HP/4Kw |
| Power HST40: | 7.5HP/5.5Kw |
| Weight: | 59 kg |
| Box Dimensions: | 55 × 31 × 45 cm |
| Warranty : 12 Months |

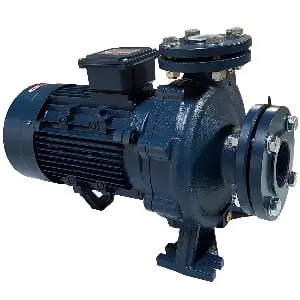

The Hurricane HST40-200-5.5 standard centrifugal pump is a 380V 5.5KW self priming pump used to boost pressure in waterline.
It can be controlled by a PC13 automatic pump controler 220V.
Operating Conditions
Max Flow :29m3/Hour
Max Head Height : 37m
| Specifications | |
| Voltage: | 380V 50Hz |
| Power HST32: | 5.5HP/4Kw |
| Power HST40: | 7.5HP/5.5Kw |
| Weight: | 73 kg |
| Box Dimensions: | 620mm(L) x 330mm(W) x 460mm(H) |
| Warranty : 12 Months |
The Hurricane HST40-200-7.5 standard centrifugal pump is a 380V 7.5KW self priming pump used to boost pressure in waterline.
It can be controlled by a PC13 automatic pump controller 220V.
Operating Conditions
Max Flow :29m3/Hour
Max Head Height : 37m
| Specifications | |
| Voltage: | 380V 50Hz |
| Power HST32-200: | 5.5HP/4Kw |
| Power HST40-200: | 10HP/7.5Kw |
| Power HST40-250: | 15HP/11Kw |
| Power HST50-200: | 15HP/11Kw |
| Box Dimensions: | 620mm(L) x 330mm(W) x 460mm(H) |
| Warranty : 12 Months |
The Hurricane HST40-250-11 standard centrifugal pump is a 380V 11KW self priming pump used to boost pressure in waterline.
It can be controlled by a PC13 automatic pump controler 220V.
Operating Conditions
n/a
| Specifications | |
| Voltage: | 380V 50Hz |
| Power HST32: | 15HP/11Kw |
| Box Dimensions: | 620mm(L) x 330mm(W) x 460mm(H) |
| Warranty : 12 Months |

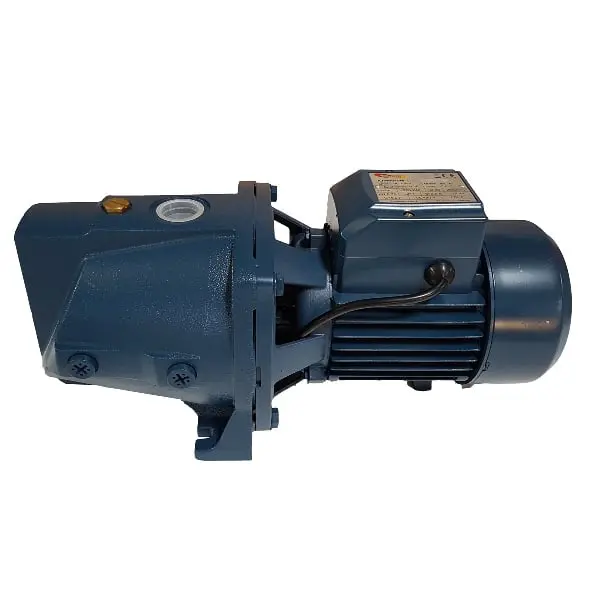

The Hurricane JSW10M centrifugal pressure pump is a 220V 0.75KW self priming pump used to boost pressure in waterline.
It can be controlled by a PC13 automatic pump controller 220V.
Operating Conditions
Maximum fluid temperature: 40°C
Maximum ambient temperature: 40°C
| Specifications | |
| Voltage: | 220V-240V 50Hz |
| Power JSW10M: | 1HP/0.75Kw |
| Power JSW15M: | 1.5HP/1.1Kw |
| Outlet: | 25mm |
| Inlet: | 25mm |
| Weight: | 14.4 kg |
| Box Dimensions: | 423mm(L) x 190mm(W) x 208mm(H) |
| Warranty : 12 Months |
